Model: J20
Wesentliche Merkmale:
Tragfähigkeit: 300kg
Maximale Arbeitshöhe: 21,6m
Maximaler Arbeitsradius: 14,5 m
Wasserdicht nach IP65
Vier-Rad-Antrieb mit ausgeglichenen Achsen.
REXROTH + ZAPI Elektrisches Steuerungssystem
20m Teleskopbühnen zu verkaufen
Die Jovoo-Teleskoparbeitsbühnen des Modells J20 definieren die Produktivität von Hubarbeitsbühnen mit einer maximalen Arbeitshöhe von 21,6 Metern neu. Entwickelt für verschiedene Anwendungen wie Bau, Wartung, Telekommunikation, Filmproduktion und mehr, bieten diese Hebebühnen eine unvergleichliche Vielseitigkeit als Hebebühnen. Sie sind wasserdicht nach IP65 und verfügen über einen Allradantrieb mit ausbalancierten Achsen für Stabilität und Traktion und gewährleisten einen reibungslosen Betrieb in jeder Umgebung. Mit dem REXROTH + ZAPI Electric Steuerungssystem bieten diese Hubarbeitsbühnen zudem eine präzise Leistung. Ob für kleine Unternehmen, große Firmen oder Hausbesitzer, sie bieten unübertroffene Zuverlässigkeit und Leistung. Bringen Sie Ihre Projekte mit den Jovoo J20 Teleskopmastbühnen in Schwung – Ihre ultimative Hebebühnenlösung!
*** Übersetzt mit www.DeepL.com/Translator (kostenlose Version) ***
A ---Maschine Länge: 10.3m
B---Maschinenbreite: 2.49m
C---Maschinenhöhe: 2,26m
D---Radstand: 2,5 m

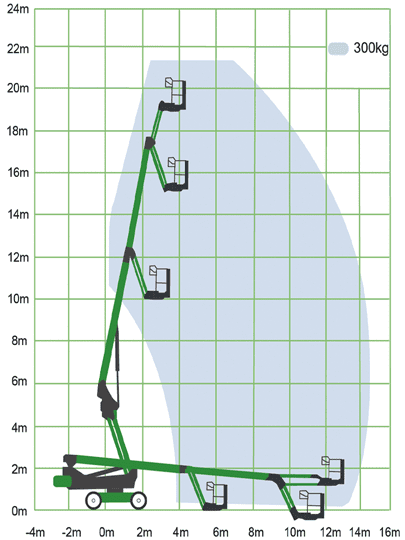

20m Teleskopmastbühne: Video & Reichweite
20m Teleskopmastbühne Details
Spezifikationen
Eigenschaften
Optionen
Spezifikationen
platform occupancy3 people
| Model | J20 |
| Max Working Height | 21.6m |
| Max Platform Height | 19.6m |
| Max. Operating radius | 14.5m |
| Platform dimensions | 1.8*0.75m |
| Length-stowed | 10.3m |
| Width-stowed | 2.49m |
| Height-stowed | 2.26m |
| Wheelbase | 2.5m |
| Ground clearance(center) | 0.3m |
| Weight | 9100kg |
| platform occupancy | 3 people |
| Lift capacity | 300kg |
| Platform rotation | ±80° |
| Jib rotation | ±70° |
| Turntable rotation | 360°continuous |
| Drive speed-stowed | 4.8km/h |
| Drive gradeability | 45% |
| Max. Working angle | 3° |
| Turning radius (outside) | 5m |
| Drive & steer mode | 4×2 |
| Battery | 48V/420Ah |
| Pump motor | 12kw |
| Drive electric motor | 3.3kw |
| Control voltage | 12V |
| LFP battery | Optional |
| Power Plus Generator | Optional |
| Insulated platform | Optional |
Eigenschaften
- The Ground Control Panel features a REXROTH + ZAPI Electric control system, ensuring IP65 waterproof level, abundant error code display interface, simulated operation icon, and emergency stop and interlock for machine entry and exit.
- 160°rotatable platform provides a larger working range, while narrow turntable with compact layout, improves work efficiency. And the aluminum alloy working bucket can be disassembled and assembled flexibly.
- Intuitive and friendly control panel makes easy to operate full range operation. Electro-hydraulic proportional system control is accurate and efficient. It provides chassis tilt protection, emergency lowering, safe speed limit, comfortable start and stop technology and other protective measures.
- The battery is produced byQUIMO BATTERY.QUIMO BATTERY is a lead-acid battery specially used for aerial work boom lifts, and 8 batteries provide a strong power of 48V/420Ah for the V18.
- The aluminum alloy working platform offers a combination of lightweight construction, high strength, rust resistance, and easy disassembly, with the option of a steel working platform available.
- The hydraulic valve is manufactured by SANT (HydraForce).
- The Platform Control Panel is equipped with a REXROTH + ZAPI Electric control system, enabling full proportional control of walking and jib movements, driving confirmation, high and low-speed options, machine power display, and key fault light alarm.
- The bolts utilize the DACROMET process, a cutting-edge surface treatment technology known for its superior corrosion resistance, representing a “green electroplating” alternative to traditional methods.
Optionen
- Solid Non-Marking Tires
- Foam-Filled Tires
- Lithium Iron Phosphate Batteries
Specifications
Features
Options
Specifications
| Model | J20 |
| Max Working Height | 21.6m |
| Max Platform Height | 19.6m |
| Max. Operating radius | 14.5m |
| Platform dimensions | 1.8*0.75m |
| Length-stowed | 10.3m |
| Width-stowed | 2.49m |
| Height-stowed | 2.26m |
| Wheelbase | 2.5m |
| Ground clearance(center) | 0.3m |
| Weight | 9100kg |
| platform occupancy | 3 people |
| Lift capacity | 300kg | platform occupancy | 3 people |
| Platform rotation | ±80° |
| Jib rotation | ±70° |
| Turntable rotation | 360°continuous |
| Drive speed-stowed | 4.8km/h |
| Drive gradeability | 45% |
| Max. Working angle | 3° |
| Turning radius (outside) | 5m |
| Drive & steer mode | 4×2 |
| Battery | 48V/420Ah |
| Pump motor | 12kw |
| Drive electric motor | 3.3kw |
| Control voltage | 12V |
| LFP battery | Optional |
| Power Plus Generator | Optional |
| Insulated platform | Optional |
Features
- The Ground Control Panel features a REXROTH + ZAPI Electric control system, ensuring IP65 waterproof level, abundant error code display interface, simulated operation icon, and emergency stop and interlock for machine entry and exit.
- 160°rotatable platform provides a larger working range, while narrow turntable with compact layout, improves work efficiency. And the aluminum alloy working bucket can be disassembled and assembled flexibly.
- Intuitive and friendly control panel makes easy to operate full range operation. Electro-hydraulic proportional system control is accurate and efficient. It provides chassis tilt protection, emergency lowering, safe speed limit, comfortable start and stop technology and other protective measures.
- The battery is produced byQUIMO BATTERY.QUIMO BATTERY is a lead-acid battery specially used for aerial work boom lifts, and 8 batteries provide a strong power of 48V/420Ah for the V18.
- The aluminum alloy working platform offers a combination of lightweight construction, high strength, rust resistance, and easy disassembly, with the option of a steel working platform available.
- The hydraulic valve is manufactured by SANT (HydraForce).
- The Platform Control Panel is equipped with a REXROTH + ZAPI Electric control system, enabling full proportional control of walking and jib movements, driving confirmation, high and low-speed options, machine power display, and key fault light alarm.
- The bolts utilize the DACROMET process, a cutting-edge surface treatment technology known for its superior corrosion resistance, representing a “green electroplating” alternative to traditional methods.
Options
- Solid Non-Marking Tires
- Foam-Filled Tires
- Lithium Iron Phosphate Batteries
