Diesel Telescopic Boom Lifts for Sale

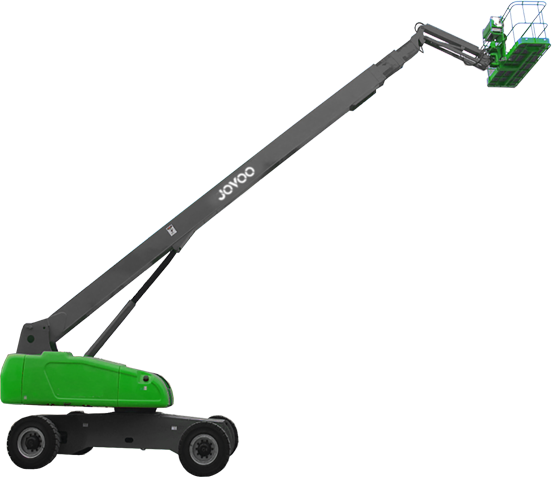

Introduction to Diesel Telescopic Boom Lift

Jovoo diesel telescopic boom lift provides 30-46 meters platform height for those high and complex aerial jobs, powered by strong diesel engine. It can adapt to specific working environments, such as humid, corrosive, dusty, high temperature, and low temperature environment. The boom lift platform is always safe to walk on wherever the booms are. The walking speed decreases with the increase of lifting height. All operation and control systems are designed to guarantee worker’s safety and efficiency.

The platform of diesel powered telescopic boom lift adopts hydrostatic leveling system that runs more smoothly and precisely than traditional hydraulic platform. More importantly, it can avoid electrical fault caused by misoperation. Please browse diesel telescopic boom lift models to find a good helper for your business. Any questions, please contact us for details.

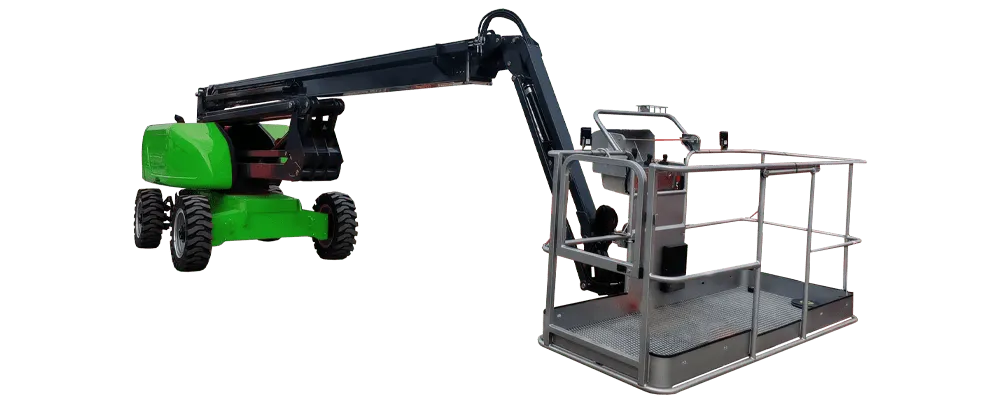

Diesel Telescopic Boom Lift Advantages:

Large working range with great load capacity of up to 480kg;
Strong diesel power engine with longer endurance;
Complete safety protection device to ensure workers’safety;
Awesome 4-wheel off-road ability to be fit for multiple worksites.

Diesel Telescopic Boom Lift Models and Parameters

Model	J28D	J32D	J38D	J42D	J46D	J56D
Max Working Height	30m	34m	40.4m	44m	48m	58m
Max Platform Height	28m	32m	38.4m	42m	46m	56m
Max Operating Radius	20.6m	21.4m	24m	24m	23.6m	26m
Platform Dimensions (L*W)	2.44×0.91m	2.44×0.91m	2.44×0.91m	2.44×0.91m	2.44×0.91m	2.44×0.91m
Machine Weight	16800kg	19250 kg	22900 kg	24600kg	23110 kg	27500kg
Load Capacity	300kg/480kg	300kg/480kg	300kg/480kg	300kg/480kg	300kg/480kg	300kg/480kg
Power	53kw/2200rpm	54kw/2400rpm	54kw/2400rpm	53kw/2200rpm	54kw/2200rpm	74kw/2400rpm
Fuel Tank Volume	151L	151L	151L	151L	151L	200L
Control Voltage	12V	12V	12V	12V	12V	24V

Brochure of Diesel Telescopic Boom Lift from JOVOO
